350T to 2500T Scrap Metal Shear

Other name: scrap metal cutting machine
Cutting power: 350T to 2500T
Blade width: 800mm-3000mm
Production Rate: 20-200 ton/hour
Product description: Supply scrap metal shear with 350T to 2500T Shearing Force
INQUIRY

What is scrap metal shear? what is its application?

A scrap metal shear is an industrial machine designed to cut and process scrap metal into smaller, more manageable pieces. These shears are essential in the recycling industry, especially for breaking down metal materials for easier handling, transport, and further processing. They use a powerful hydraulic or mechanical cutting action to slice through metal objects, such as beams, pipes, car frames, and other large metal structures.

<a href=https://www.dlindustrygroup.com/product/350T-to-2500T-Scrap-Metal-Shears.html target='_blank'>scrap metal shear</a> scrap shear baler inclined scrap shear

We can supply several kinds of scrap metal shears:

1. Scrap Metal Shear With Side Compression or named scrap shear baler

This kind of scrap shear can be named scrap metal shear baler, side press scrap shear, scrap metal baling press, scrap metal shear with press, etc. Compared with the normal scrap metal shearing machine, it presses the scrap before shearing. It doesnt need big blades, and doesnt need high shearing force because the scrap metal is pressed. It need more stronger and more reliable compression tank. Shearing force of Scrap Metal Shear With Side Compression is 400T to 2000T.

Consider the different size of customers' workshop and the shearing requirement, we can design the Scrap Metal Shear With Side Compression according to the according to actual applications.

Feature of Scrap Metal Shear With Side Compression:

A type of metal shearing machine designed for processing scrap metal

In addition to the main cutting blades, it has hydraulic side compression arms

The side compression arms apply force perpendicular to the main shearing action

This side compression helps stabilize and hold the scrap metal piece in place

Allows for cutting of irregular, twisted, or otherwise difficult-to-grip scrap materials

Commonly used in scrapyards, recycling facilities, and metal fabrication shops

Utilizes powerful hydraulic systems to drive both the main shearing blades and side compression

Can handle thick, heavy-duty materials like steel plates, beams, pipes, etc.

Facilitates efficient size reduction and preparation of scrap metal for further processing

Includes important safety features like blade guarding, emergency stops, and operator controls

Requires skilled operation and regular maintenance for optimal performance and safety

Enhances productivity and throughput in metal recycling and processing operations

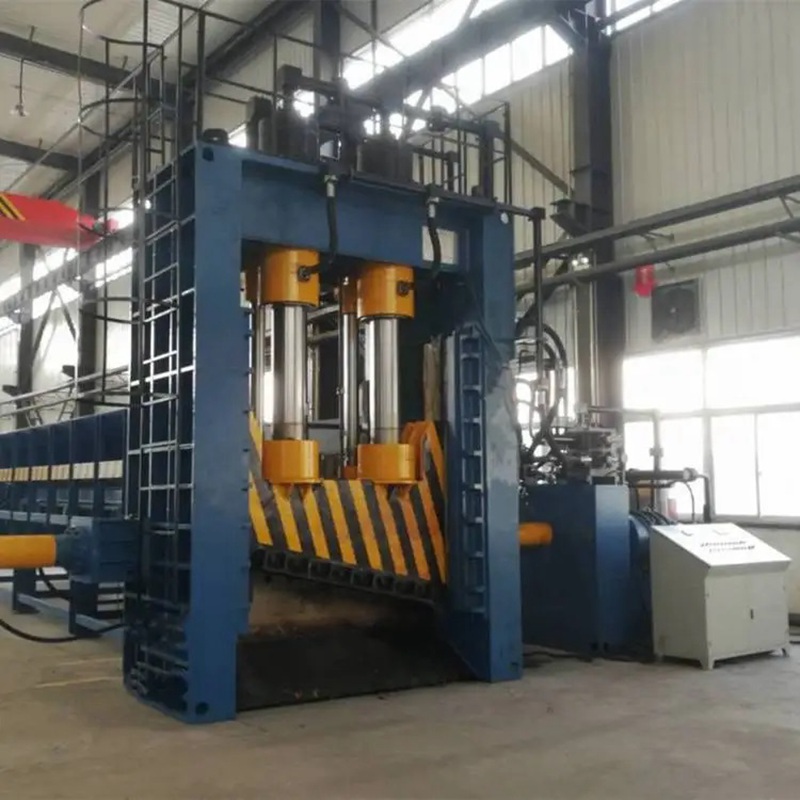

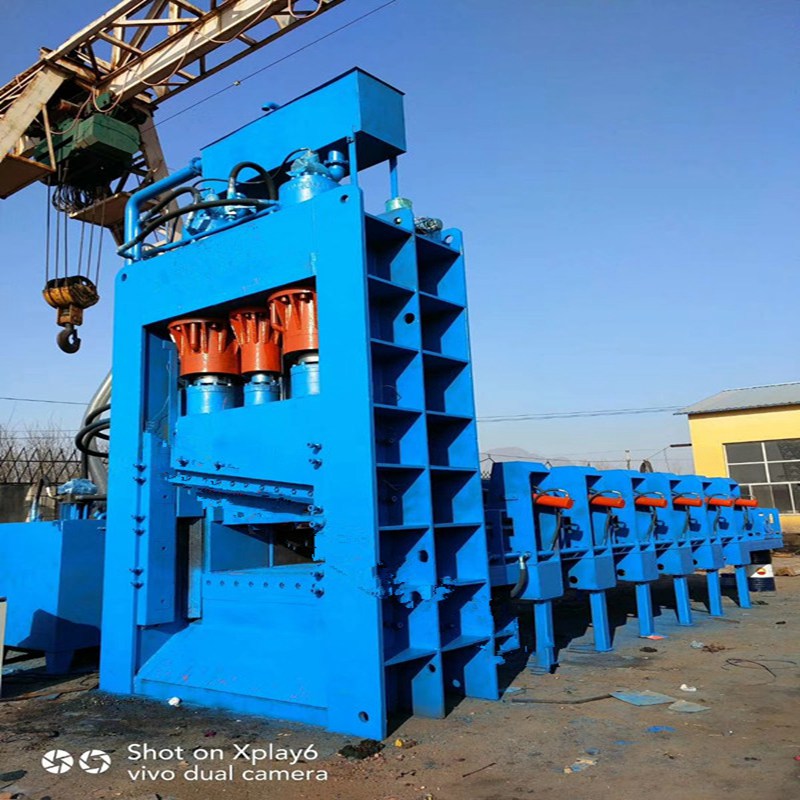

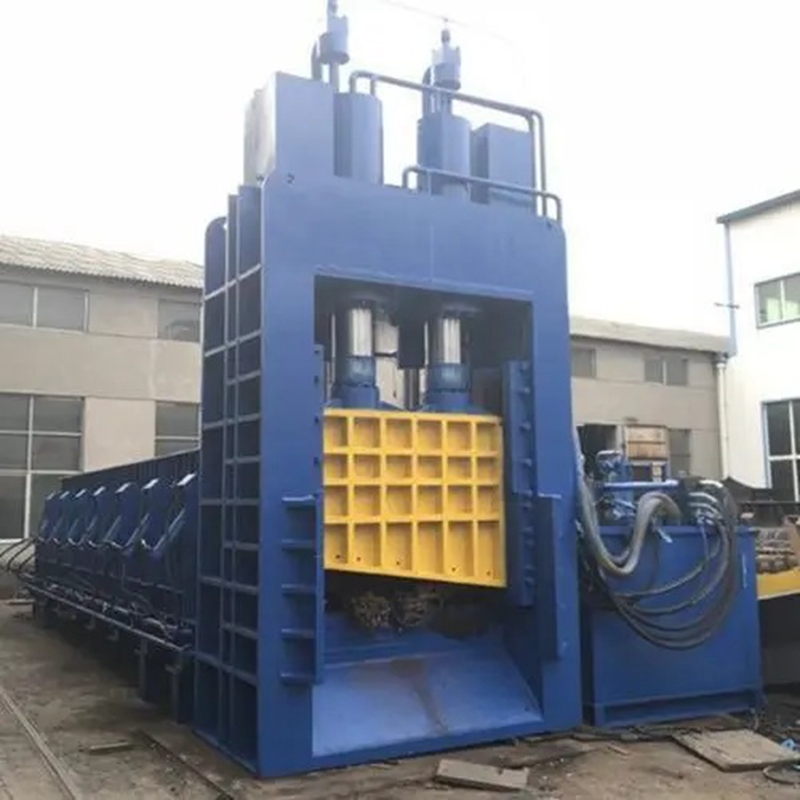

2. gantry scrap metal shear

Gantry scrap metal shear is popular in China. Its blade width is larger than the Scrap Metal Shear With Side Compression because it does not press the scrap metal before shearing, it can shear larger size scrap metal, iron sheet, etc. Gantry scrap metal shear has the feeding tank of scrap metal, but the tank just has the storage function without pressing function. Shearing force of gantry scrap metal shear is from 350T to 2500T, much bigger than scrap metal shear with side compression and inclined metal scrap shear, it means that it can cut thicker iron sheet, scrap metal, etc.

Chinese steel plants need high-density scrap bale to save cost(Furnace tank size is fixed, if the raw material has higher density, it will save more cost for melting one furance tank raw material). The scrap metal after shearing by scrap metal shear with side compression does not meet the high density requirement by steel plant, so they use scrap metal baler to press the scrap metal after shearing，therefore Chinese market choose the gantry scrap metal shear without pressing function.

Feature of gantry scrap metal shear:

A type of heavy-duty metal shear designed to cut thick, large pieces of scrap metal

Cost is lowest one with same shearing force among other scrap metal shear

The "gantry" refers to the elevated frame that the cutting blades are mounted on

Allows for cutting of bulky or awkwardly-shaped scrap metal items that may be difficult to handle

Typically used in scrapyards, recycling facilities, and metal fabrication shops

Can handle materials like steel plates, beams, pipes, and other thick metal objects

Powerful hydraulic or mechanical drive systems provide the shearing force

Allows for efficient processing and size reduction of large scrap metal pieces

Important safety features like guarding and emergency stops to protect operators

Require skilled operators and regular maintenance to function properly

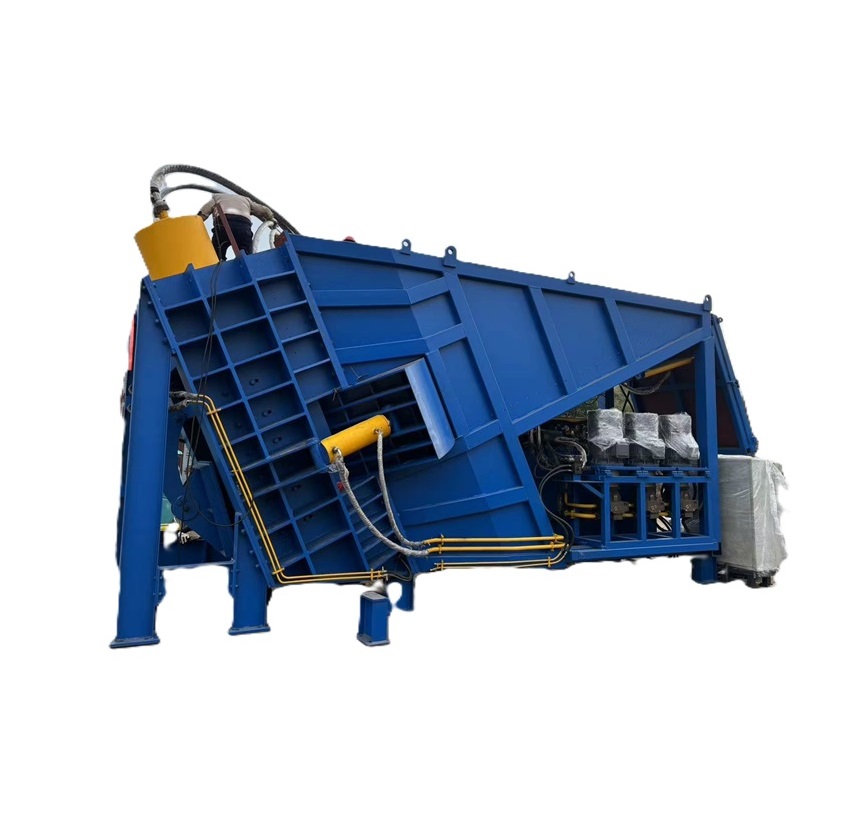

3. inclined scrap metal shear

Inclined metal scrap shear is another type of scrap shear. Compared with the scrap metal sehar with side compression and gantry scrap metal shear, it doesnt need the pushing cylinder at the back of the scrap metal feeding tank. Usually its blade width is shorter than gantry type scrap metal shear, same with scrap metal shear with side compression. Shearing force of inclined metal shear shear is 400T to 2000T.

Feature of inclined metal scrap shear:

A type of metal shearing machine designed for cutting and processing scrap metal

The cutting blades are mounted on an inclined frame, rather than a vertical orientation

The inclined angle allows for easier feeding and positioning of scrap metal pieces

Helps accommodate longer, bulkier, or irregularly shaped scrap metal items

Commonly used in scrapyards, recycling facilities, and metal fabrication shops

Utilizes powerful hydraulic or mechanical drives to generate the shearing force

Cuts through thick materials like steel plates, beams, pipes, etc.

Enables efficient size reduction and preparation of scrap metal for further processing

Includes safety features like blade guarding, emergency stops, and operator controls

Requires skilled operation and regular maintenance for optimal performance

Helps improve productivity and throughput in metal recycling and processing operations

Advantage of our scrap metal shears

DL Industry Group Limited is top manufacturer of scrap metal shear, factory is located in Tianjin. Scrap metal shear is one of our hot sales machine. We can design and produce as customers' requirement inlcuding the cutting power, feeding tank dimension, production rate, blade width, etc.

Item	Our scrap shear/scrap shear baler	Others scrap shear/scrap shear baler	Our Advantage
Main Frame	Steel S45C (Japan: S45C, US: 1045, German: C45) Tensile strength: 600MPa Yield strength: 355MPa	Normal steel: Q235 Tensile strength:375-460MPa Yield strength: 235MPa	Our Tensile strength is 160% of normal steel Our Yield strength is 151% of normal steel
Pressure tank plate	HARDOX550 hardness: 550HBW	normal High Mn steel hardness: 190-220HBW or Normal Steel hardness: 140-200HBW	Our hardness is 250%-390% of normal High Mn steel or normal steel
Motor	Servo motor	normal motor	1. our motor brand is Top 1 China motor brand in this industry. 2. ours is servo motor, it can provide 150-200% power of normal motor with same electric comsuption. 3. when shear machine work, the servo motor work. When you feeding raw material, the servo motors dont work. When you turn on the machine, the normal motor will always work. servo motor will save 50-70% power. save 50-70% electric cost. 4. The servo motor can better adapt to the high temperature in the Middle East 5. our servo motor price is much higher than normal motor 6. In China, the professional buyer will not accept to use normal motor.
Blade	X45 hardness: 58-60 HRC	H13 or worse one hardness: 40-52 HRC	Our hardness is about 150% of normal one. X45 blade price is about 200-300% of normal one
Total Power (Take 1250T scrap shear as an example)	182 KW	270KW-350KW	same shearing force, same shearing speed, our scrap shear save 50% to 70% power

The scrap metal shears from DL Industry Group use servo motors. Compared with traditional motors, servo motors save 30%-50% energy, and are matched with high-quality oil pumps, which can make the scrap metal shears reach the highest speed in 0.2 seconds. Compared with other scrap metal shears, our equipment only takes 20 seconds to shear once, and can shear 3 times a minute, which increases efficiency by 150%-300%.
In addition, considering that China's scrap metal processing volume is much larger than that of other countries, our customers usually need to use scrap metal shear 24 hours a day. We use a more reliable patented mechanical frame, and use wear-resistant high-carbon manganese steel as the material box contact surface, and the blade is made of X45 material.
Our scrap metal shears use a PLC control system, which can be fully automatic and equipped with remote control. The excavator driver only needs to grab the waste and control the scrap metal shears to automatically cover and shear through the remote control, and no additional staff operation is required.

General introduction of our scrap metal shear with side compression

Download the catalog of our scrap metal shear, scrap shear baler: scrap shear & scrap shear baler catalog

General introduction of our scrap metal shear

350T 400T Scrap Metal Shear
Item	350T 400T Gantry scrap metal shear	400T Scrap metal shear Baler	400T Inclined Scrap shear
Blade Width,mm	1000-1400	800	800
Output rate, t/h	10-35	10-25	10-30
Motor	normal motor	servo motor/normal motor	servo motor/normal motor
Control	PLC +Remote Control+Touch Screen
Remote diagnosis	Yes	Yes	Yes
Warranty	1 year	max. 2 year	max. 2 year

500T 630T 800T Scrap Metal Shear
Item	500T 630T 800T Gantry scrap metal shear	800T Scrap metal shear Baler	630T 1000T Inclined Scrap shear
Blade Width,mm	1400-1800	800	1200
Output rate, t/h	30-80	20-60	20-60
Motor	servo motor/normal motor	servo motor/normal motor	servo motor/normal motor
Control	PLC +Remote Control+Touch Screen
Remote diagnosis	Yes	Yes	Yes
Warranty	1/1.5/2 year	1/1.5/2 year	1/1.5/2 year

1000T 1250T 1500T 1600T Scrap Metal Shear
Item	1000T 1250T 1500T 1600T Gantry scrap metal shear	1000T 1250T 1500T Scrap metal shear Baler	1000T 1250T 1500T Inclined Scrap shear
Blade Width,mm	1800-2400	800-1100	1200-1400
Output rate, t/h	30-140	30-100	25-110
Motor	servo motor/normal motor	servo motor/normal motor	servo motor/normal motor
Control	PLC +Remote Control+Touch Screen
Remote diagnosis	Yes	Yes	Yes
Warranty	1/1.5/2 year	1/1.5/2 year	max. 2 year

1000T 1250T 1500T 1600T Scrap Metal Shear
Item	2000T 2500T Gantry scrap metal shear	2000T Scrap metal shear Baler	2000T Inclined Scrap shear
Blade Width,mm	2400-2600	1100-1400	1200-1400
Output rate, t/h	50-180	40-120	40-140
Motor	servo motor/normal motor	servo motor/normal motor	servo motor/normal motor
Control	PLC +Remote Control+Touch Screen
Remote diagnosis	Yes	Yes	Yes
Warranty	1/1.5/2 year	1/1.5/2 year	max. 2 year
