We are focused on the beryllium inorganic substance, metal and alloy including the beryllium metal, beryllium oxide, beryllium fluoride, aluminum beryllium master alloy, beryllium copper master alloy, beryllium copper alloy(C17000, C17200, C17300, C17410, C17500, C17510, JK520, JK38, etc).

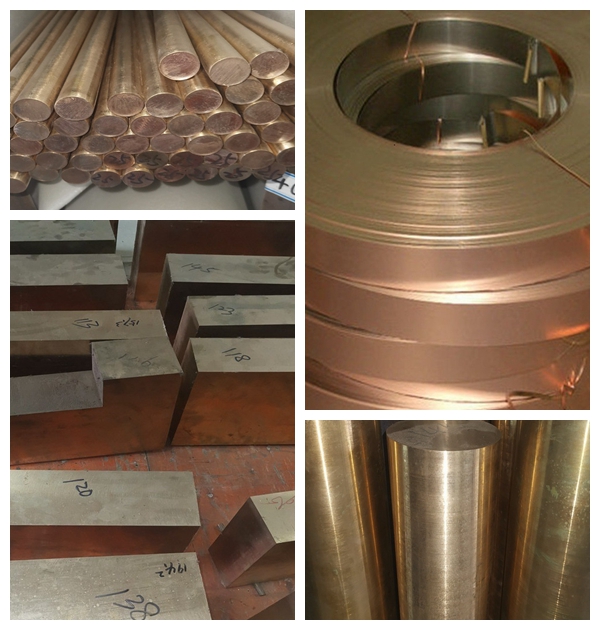

For C17300 Beryllium copper, we can supply as below:

C17300 Beryllium copper rod, C17300 Beryllium copper bar

Diameter (unit: mm): 1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 6.0, 6.5, 7.0, 8, 10, 12, 14, 15, 16, 18, 20, 25, 28, 30, 35, 40, , 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 115, 120, 125, 130, 140, 150, 160, 170, 180, 190, 200,

Length: 1000-2000mm（can produce as customers’ required dimeter）

C17300 Beryllium copper strips, C17300 Beryllium copper coil

Thickness (unit: mm): 0.05, 0.08, 0.1, 0.12, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5, 0.6, 0.7, 0.8, 1.0, 1.2（can produce as customers’ required dimeter）

Width: 200mm（can produce as customers’ required dimeter）

C17300 Beryllium copper wire

Diameter (unit: mm): 0.1, 0.12, 0.15, 0.18, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5, 0.6, 0.65, 0.7, 0.75, 0.8, 0.85, 0.9, 0.95, 1.0（can produce as customers’ required dimeter）

C17300 Beryllium copper sheet, C17300 Beryllium copper plate

Thickness (unit: mm): 1.0, 1.5, 1.6, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10, 12, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115, 120, 130, 140, 150mm

Width*length(unit: mm): 400*600（can produce as customers’ required dimeter）

C17300 Beryllium copper tube

Same grade with C17300 beryllium copper alloy in different countries

Other name: AlloyM25, CuBe2

China: QBe2, QBe1.9

America (US): C17300

Germany: QBe2Pb

Japan: C17300

Parameter:

Feature of beryllium copper alloy

Beryllium copper alloy combines excellent mechanical properties, physical properties and chemical properties. After heat treatment (solid solution treatment and aging treatment), it has high strength limit, elastic limit, yield limit and fatigue resistance limit comparable to special steel. At the same time, it also has high electrical conductivity, thermal conductivity, high hardness, corrosion resistance, wear resistance, good casting performance, non-magnetic and non-sparking properties on impact, and is widely used in mold manufacturing, machinery, electronics and other industries. No blisters, pores, balanced hardness, dense structure, high strength, good thermal conductivity, good electrical conductivity, corrosion resistance, excellent wear resistance, good processing performance, stable performance under high pressure conditions, non-magnetic, Excellent polishing performance and good anti-adhesive performance.

Physical properties of C17300 beryllium copper alloy:

C17300 beryllium copper alloy has same characters with C17200

High strength and hardness: C17300 alloy has excellent strength and hardness, maintaining stable mechanical properties at normal and high temperatures.

Excellent electrical conductivity: The alloy has excellent electrical conductivity, making it widely used in electrical applications that require high conductivity and low resistance.

Good thermal conductivity: C17300 alloy has good thermal conductivity and is suitable for applications requiring excellent heat dissipation properties.

We produce and supply other Beryllium Copper Master Alloy and beryllium alloy

Beryllium Copper Master Alloy CuBe4.0(Be: 3.8-4.3)

Beryllium Copper Ingot

Aluminum Beryllium Master Alloy AlBe3

Aluminum Beryllium Ingot

Aluminum Beryllium Master Alloy AlBe5

Aluminum Beryllium Ingot
